Product Specification

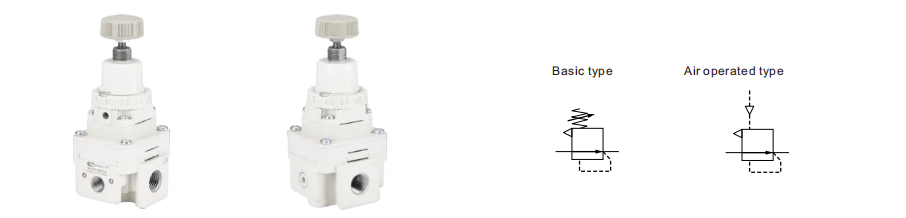

1. Precise and stable pressure control, independent of pressure, flow and temperature fluctuations.
2. Expanded pressure range up to 0.8 MPa.
3. Enhanced sensitivity 0.2% F.S.
4. Max. Flow rate up to 6000L/min.
5. Pressure gauges can be installed at the front and rear, and can be used in any combination of FRL. units.
6. Excellent pressure relief characteristics to maintain constant pressure in the event of reverse fluid flow.
7. Built from high-quality materials like zinc alloy, the regulators ensure durability and longevity in various environmental conditions.
8. Suitable for industrial automation, instrumentation, and process control.
Product Description
| Model | Basic type (Knob) | ||
| IR10□0-A | IR20□0-A | IR30□0-A | |
| Working medium | Air | ||
| Proof pressure | 1.5 MPa | ||
| Max.wroking pressure | 1.0 MPa | ||
| Min.Working pressure | Set pressure + 0.05 MPa | Set pressure + 0.1 MPa | |
| Set pressure range | IR1000-A: 0.005 to 0.2 MPa | IR2000-A: 0.005 to 0.2 MPa | IR3000-A: 0.01 to 0.2 MPa |
| IR1010-A: 0.01 to 0.4 MPa | IR2010-A:0.01 to 0.4 MPa | IR3010-A:0.01 to 0.4 MPa | |
| IR1020-A:0.01 to 0.8 MPa | IR2020-A:0.01 to 0.8 MPa | IR3020-A:0.01 to 0.8 MPa | |
| Sensitivity | Within 0.2% of full span | ||
| Repeatability | Within ±0.5% of full span | ||
| Air consumption | 1 L/min (ANR) or less | ||
| Port size | 1/8 | 1/4 | 1/4,3/8,1/2 |
| Pressure gauge port | 1/8 (2 locations) | ||
| Working temperature | -5to 60℃ (No freezing) | ||
| Description | Part No. | ||||||||
| IR1000 | IR1010 | IR1020 | IR2000 | IR2010 | IR2020/2120 | IR3000 | IR3010 | IR3020/3120 | |
| Bracket | P36201023 | P36202028 | P362030-20* | ||||||
| Pressure gauge (Rc, G) | G33-2-01 | G33-4-01 | G33-10-01 | G43-2-01 | G43-4-01 | G43-10-01 | G43-2-01 | G43-4-01 | G43-10-01 |
* A bracket and two mounting screws (M5 x 35). To mount the bracket, remove two body screws (M5 x 30) on the name plate on the opposite side and replace the attached two bracket mounting screws (M5 x 35).
| Description | Applicable model | ||
| IR10□0-□01□-X170 | IR2□□0-□02□-X170 | IR3□□0-□□□-X170 | |
| ①Air filter | AF20-A | AF30-A | AF40-A |
| ②Mist separator | AFM20-A | AFM30-A | AFM40-A |
| ③Interface | Y200-A | Y300-A | Y400-A |
| ④Interface with bracket | Y200T-A | Y300T-A | Y400T-A |
* The modular adapter attached to the Made-to-Order product (IR□□□□-□□-X170) is shipped together, but not assembled.
Main Dimensions
Catalogue PDF
English
